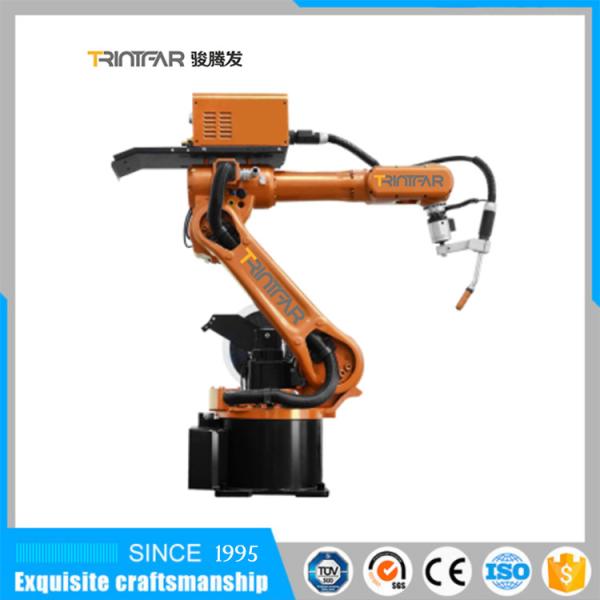

    Industrial Robot Arm Automatic CNC Fiber Laser Welding Machine Equipment 1000W 2000W 3000W

    Ask Lasest Price
    Brand Name : TRINTFAR
    Model Number : RA-100
    Certification : CE
    Price : USD 5000-8000 set
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 500 per year
    Delivery Time : Within 90 days of the final payment
    • Product Details
    • Company Profile

    Industrial Robot Arm Automatic CNC Fiber Laser Welding Machine Equipment 1000W 2000W 3000W

    Industrial Robot Arm Automatic CNC Fiber Laser Welding Machine Equipment 1000W 2000W 3000W

    Features:

    Supports Chinese, English, Russian, Korean, and Vietnamese display and programming, more languages are displayed and we are continuously developing.

    Support up to 12 axis control, realizes the control of external axes (traveling axes and positioner).

    Structural optimization algorithm suitable for the body control of various types of structure.

    Open structure for synchronization of international technology and extension of functions. Industrial standards & reliable stability.

    Software PLC functions facilitate logic control. Process functions make programming easy.

    Modular setting of functions suitable for diverse applications. Safety module ensures safe production of the robots.

    Suitable for multiple increments; absolute servo. Improved computer bus connection ensures reliability and practicability.


    We specialize in discrete industrial automation and process industrial automation, we can design, develop, install, test, debug industrial robots, its units and related accessories include fixtures, transmissions, positioning devices and control systems, we can provide welding robots, painting robots , Handling robots and grinding robots have a lot of reference significance in the domestic automation industry.
    .
    Specification
    Model
    RA-100
    Payload
    6 KG
    Max Working Radius
    1405 mm
    Arm Length
    2391 mm
    Number of Axis
    6


    Max speed
    Axis1
    158 °/S
    Axis2
    145°/S
    Axis3
    140 °/S
    Axis4
    217 °/S
    Axis5
    172 °/S
    Axis6
    500 °/S



    Max Operation Area
    Axis1
    ±170°
    Axis2
    +80° ~150°
    Axis3
    +95° ~ -72°
    Axis4
    ±170°
    Axis5
    ±122°
    Axis6
    ±220°
    Weight
    300kg
    Position Repeatability
    0.05mm
    Working temperature
    0-45 ℃
